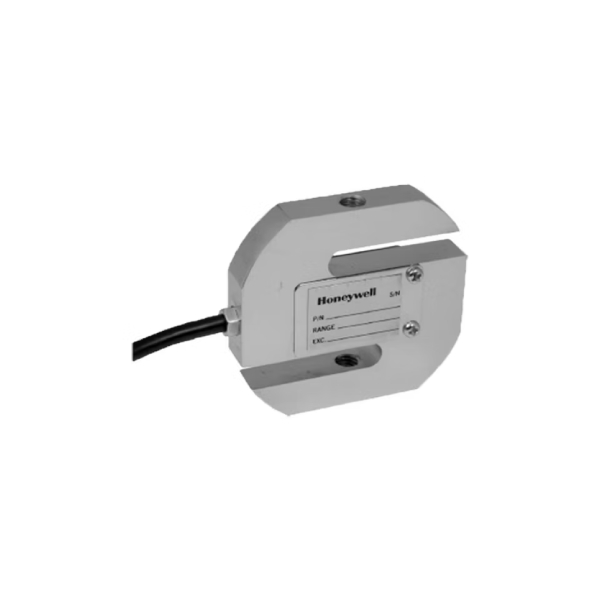

060-J935-12 Honeywell Load Cell

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	060-J935-12
Order Code	BL804LQ,1AH,2U,6F,15C
Range	1,000 Kg
Accuracy	±0.02 % full scale
Output	2 mV/V (nominal)
Temperature (Operating)	-30°C to 70°C [-22°F to 158°F]
Series Name	Model 102

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

060-J935-12 Honeywell Load Cell

DESCRIPTION
The Model 102 load cells combines both a compact form and
high precision to offer a superior tension force transducer. The
one-piece S-shaped design achieves a maximum non-linearity
of 0.02 % full scale for load ranges from 20 kg to 1000 kg.
Additional features include minimal temperature effects on zero
and span of 0.002 %/°C and 0.002 %/°C, respectively.
